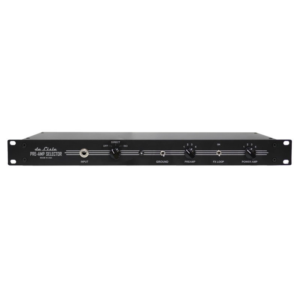

de Lisle Preamp Power Amp Selector 4×4 with FX Loop

de Lisle Preamp Power Amp Selector 4x4 with FX Loop

$599.00
de Lisle Preamp Power Amp Selector 4x4 with FX Loop
de Lisle Preamp Power Amp Selector 4x4 with FX Loop
de Lisle Preamp Power Amp Selector 4x4 with FX Loop
de Lisle Preamp Power Amp Selector 4x4 with FX Loop
de Lisle Preamp Power Amp Selector 4x4 with FX Loop
de Lisle Preamp Power Amp Selector 4x4 with FX Loop

de Lisle Preamp Power Amp Selector 4x4 with FX Loop

$599.00
The de Lisle Pre-Amp Selector was designed to improve workflow in the studio by eliminating the need to re-cable when switching between numerous preamps and power amps.

Plug in your guitar / pedalboard and send it to any of the 4 connected preamps (or modelers) by rotating the Preamp dial. The preamp's output is then sent to the selected Power Amp. Alternatively, one could connect any line level device to the rear panel Power Amp Input jacks. So, one could be assigned to a power amp, another to a recording interface, external FX, etc. There is also an FX loop between the Preamp and Power Amp which can be bypassed on the front panel.

The Preamp Selector runs off a standard 2.1mm/5.5mm center negative 9VDC supply, which is boosted internally for increased signal headroom. Preamp inputs are transformer isolated to prevent ground loops. Unused preamps are muted at their input.
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $599.00
599.000
A one-time price of $599.00 will be added to your order.
Facebook
X
Email
Pinterest
  • Specs
• Off / Mute / Power Switch
• Guitar / Pedalboard Input
• Preamp Input (4)
• Preamp Output (4)
• Power Amp Input (4)
• FX Input
• FX Output
• FX Bypass Switch
• Ground Switch
• Transformer Isolation
• Internally Isolated DC Power Supply
• Boosted Signal Headroom
• Silver Relay Contacts with Gold Overlay
• Auto Muting of Unused Preamps
• Aluminum and Steel Housing
• Anodized Control Panels
• 9VDC Power Supply Included
• Hand-Wired
• Lifetime Warranty
