The de Lisle Amp-Speaker Selector (Version 1) was designed as a studio tool to conveniently route the output from any of the connected amplifiers to an isolation cabinet. Alternatively, a single amplifier can be paired with one of up to three individual cabinets. Signal and ground connections from the amps are isolated, and as a precaution, the unused amps see a load. Similarly, when used as a cabinet selector, jacks with no cable inserted will be switched to an internal load. So, one can use a single cabinet or two cabinets without worrying about switching to an open cabinet jack.

The de Lisle Speaker Cabinet AB Selector Switch allows you to toggle between two speaker cabinets connected to the same amp. If your amplifier has multiple output jacks for different impedance cabinets, you can connect a second output to the ALT Z jack and toggle between two cabinets connected to different impedance outputs on the same amp. There's also a remote input that will allow you to operate the switch from a distance with a simple TS latching switch.

The de Lisle Amp-Speaker Selector V2 was designed as a studio tool to conveniently route the output of up to four amplifiers to various speaker cabinets. Just connect your amps' outputs to numbered amplifier inputs on the rear panel. Then, hook up your speaker cabinets. Routing the signals is simple: the four switches on the front panel correspond to the four speaker connections. The 0-4 positions of each bank match that speaker cabinet to an amplifier (or 0 for not connected). Use multiple amps at the same time, swap speaker cabinets between amps, or connect multiple speakers to an amp in parallel. Signal and ground connections from the amps are always isolated from one another. And as a precaution, the unused amps see a load.

Save 15% with the Amp-Speaker Selector V3 and Drop Box 50W Linearly Variable Attenuator bundle! Add our transformer isolated ABC switch to route the input signal for more savings!

The de Lisle Amp-Speaker Selector V3 was designed as a studio tool to conveniently route the output of up to three amplifiers to various speaker cabinets. This version features a loop to allow a single attenuator or similar device to be easily shared between any combination of the amps and speakers.

Just connect your amps' outputs to numbered amplifier inputs on the rear panel. Then, hook up your speaker cabinets. Routing the signals is simple: the three Speaker switches on the front panel correspond to the three speaker connections. The 0-3 positions of each bank match that speaker cabinet to an amplifier (or 0 for not connected).

Connect your attenuator's input to the Send jack and its output to the Return jack. Use the front panel Send knob to connect the attenuator to any of the amps' outputs. Then, set one or more of the Speaker knobs to the return arrow icon (position 5).

Use multiple amps at the same time, swap speaker cabinets between amps, share a single attenuator or connect multiple speakers to an amp in parallel. Signal and ground connections from the amps are always isolated from one another. And as a precaution, the unused amps see a load.

The de Lisle FX Loop Router allows you to effortlessly share your FX between up to 8 amps.

Plug your FX into the rear panel FX Input and FX Output jacks. Then rotate the Amplifier dial to route your FX to any of the connected amp loops. Unused amps are placed in bypass mode to prevent noise. We've also included a front panel Bypass switch for the selected amp and a Ground switch to help eliminate noise.

The FX Loop Router runs off a standard 2.1mm/5.5mm center negative 9V supply (included). We've also provided a "daisy chain" extension jack, so you can connect external 9VDC powered devices.

Desktop model shown. Rackmount enclosure available as an option.

The de Lisle Amp-Speaker Selector 7x7 with Attenuator Loop was designed as a studio tool to conveniently route the output of up to seven tube amplifiers to various speaker cabinets. This version features a loop to allow a single attenuator or similar device to be easily shared between any combination of the amps and speakers.

Just connect your amps' outputs to numbered amplifier inputs on the rear panel. Then, hook up your speaker cabinets. Routing the signals is simple: the seven Speaker switches on the front panel correspond to the seven speaker connections. The 0-7 positions of each bank match that speaker cabinet to an amplifier (or 0 for not connected).

Connect your attenuator's input to the Send jack and its output to the Return jack. Use the front panel Send knob to connect the attenuator to any of the amps' outputs. Then, set one or more of the Speaker knobs to the return arrow icon (position 9).

Use multiple amps at the same time, swap speaker cabinets between amps, share a single attenuator or connect multiple speakers to an amp in parallel. As a precaution, the unused amps see a load.

The de Lisle Amp-Speaker Selector 8 x8 was designed as a studio tool to conveniently route the output of up to eight tube amplifiers to various speaker cabinets.

Just connect your amps' outputs to numbered amplifier inputs on the rear panel. Then, hook up your speaker cabinets. Routing the signals is simple: the eight Speaker switches on the front panel correspond to the eight speaker connections. The 0-8 positions of each bank match that speaker cabinet to an amplifier (or 0 for not connected).

Use multiple amps at the same time, swap speaker cabinets between amps, or connect multiple speakers to an amp in parallel. Signal connections from the amps are always isolated from one another. And as a precaution, the unused amps see a load.

The de Lisle Amp-Speaker 4x4 Deluxe was designed to improve workflow in the studio by eliminating the need to re-cable amps and cabs. This version expands on our previous designs by incorporating simultaneous input switching and a bypassable attenuator loop.

Plug in your guitar / pedalboard and send it to any of the 4 connected amps by rotating the Amplifier dial. The amp's output is then sent to the selected speaker cabinet. We've also included an attenuator loop that allows you to easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet.

The 4x4 Deluxe runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifier inputs are transformer isolated to prevent ground loops. Unused amps are muted at the input and switched to a protective load.

Desktop model shown. Rackmount enclosure available as an option.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Pre-Amp Selector was designed to improve workflow in the studio by eliminating the need to re-cable when switching between numerous preamps and power amps.

Plug in your guitar / pedalboard and send it to any of the 4 connected preamps (or modelers) by rotating the Preamp dial. The preamp's output is then sent to the selected Power Amp. Alternatively, one could connect any line level device to the rear panel Power Amp Input jacks. So, one could be assigned to a power amp, another to a recording interface, external FX, etc. There is also an FX loop between the Preamp and Power Amp which can be bypassed on the front panel.

The Preamp Selector runs off a standard 2.1mm/5.5mm center negative 9VDC supply, which is boosted internally for increased signal headroom. Preamp inputs are transformer isolated to prevent ground loops. Unused preamps are muted at their input.

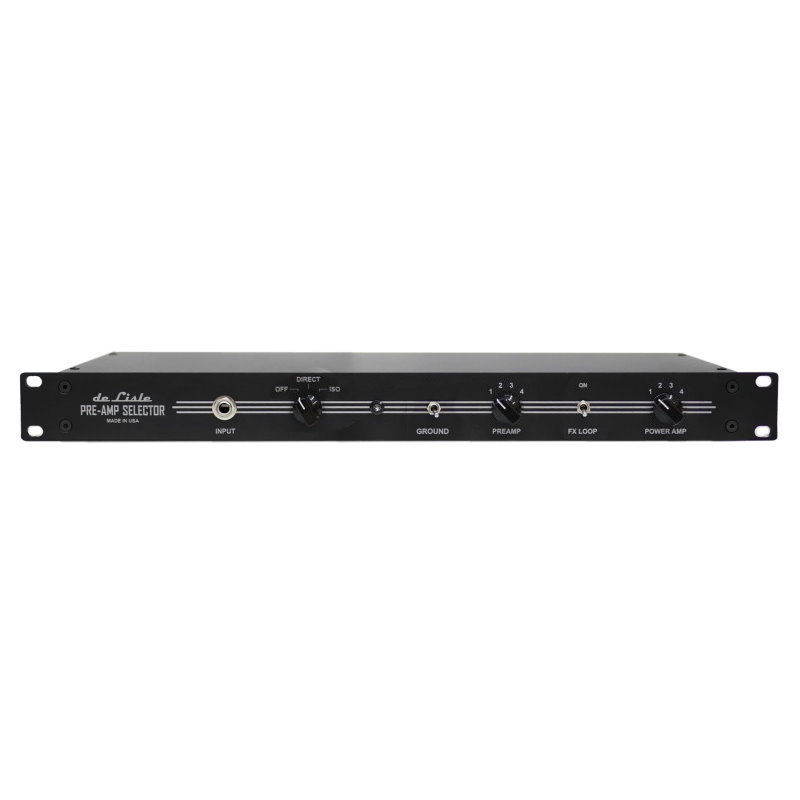

The de Lisle Preamp Power Amp Selector was designed to improve workflow in the studio by eliminating the need to re-cable when switching between numerous preamps and power amps.

Plug in your guitar / pedalboard and send it to any of the 8 connected preamps (or modelers) by rotating the Preamp dial. The preamp's output is then sent to the selected Power Amp. Alternatively, one could connect any line level device to the rear panel Power Amp Input jacks. So, one could be assigned to a power amp, another to a recording interface, external FX, etc. There is also an FX loop between the Preamp and Power Amp which can be bypassed on the front panel.

The Preamp Selector runs off a 2.1mm/5.5mm center negative 12VDC supply, which is boosted internally for increased signal headroom. Preamp inputs are transformer isolated to prevent ground loops. Unused preamps are muted at their input.

The de Lisle Amp-Speaker 8x8 Deluxe was designed to improve workflow in the studio by eliminating the need to re-cable amps and cabs. This version expands on our previous designs by incorporating simultaneous input switching and a bypassable attenuator loop.

Plug in your guitar / pedalboard and send it to any of the 8 connected amps by rotating the Amplifier dial. The amp's output is then sent to the selected speaker cabinet. We've also included an attenuator loop that allows you to easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet.

The 8x8 Deluxe runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifier inputs are transformer isolated to prevent ground loops. Unused amps are muted at the input and switched to a protective load.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 8x8 Stereo Deluxe was designed to improve workflow in the studio by eliminating the need to re-cable amps and cabs. This version expands on our previous designs by incorporating simultaneous input switching, a bypassable attenuator loop and D.I.

The 8x8 Stereo Deluxe is our first model to offer two input sources, like stereo outputs from your pedalboard or two guitars. A single source can also be sent to both active amplifiers by flipping the link switch beneath the input jacks. In right toggle position, Input A is routed to the input of the selected amps in both Banks A and B.

Amplifier Banks A/B each have up to 4 amps available for a total of 8. Both Banks have individual attenuator inserts on the rear panel, which can be bypassed with the corresponding front panel switch as well as an after-amp D.I.

Up to 8 cabs are split into sets of 4. The Assign switch allows Speaker A and Speaker B to be routed to either amplifier bank, so you can have Bank A with Speaker A and Bank B with Speaker B, or Bank A with Speaker B and Bank B with Speaker A. The multi-color LEDs under the speaker rotaries will match its assigned amplifier bank.

The 8x8 Stereo Deluxe runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifier inputs are transformer isolated to prevent ground loops. Unused amps are muted at their input and switched to a protective load.

The de Lisle Amp-Speaker 4x4 Pro was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and cabs. This version expands on our previous designs by incorporating simultaneous input switching, fx loop switching and an attenuator loop.

Turning the front panel Amplifier dial will do the following:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the Pedalboard In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

When activated, the attenuator follows the selected amp and cabinet, so you can easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet. Should you prefer to go straight from amp to cabinet, just place the Attenuator switch in the down position to bypass the attenuator loop. Similarly, the active amp's FX loop can be bypassed by placing the FX Loop switch in the down position.

The 4x4 Pro runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifiers are transformer isolated to prevent ground loops.

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 4x4 with Reactive Attenuator was designed to improve workflow in the studio by eliminating the need to re-cable amps and speaker cabinets. This version expands on our previous designs by incorporating a built-in reactive attenuator that can be used as a load box for silent recording along with a transformer isolated D.I.

Multiple functions are controlled by the Amplifier dial. Selecting positions 1-4 will:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load

Easily pair any of your amps with one of up to four connected cabinets by rotating the speaker switch. Should you need to roll back the SPL in the room, but keep your amp operating in the sweet spot, turn on the internal reactive attenuator. Attenuation is linearly variable from -6dB up to -22.5dB. Our unique design eliminates the need for impedance matching at the amp. Just connect your amp's 8 ohm output to the 4x4 Amp-Speaker Selector, then you can use any cab between 16 and 4 ohms.

Do you still want to be able to connect an Ox, Fryette Power Station or Boss Tube Amp Expander? No problem! The rear panel jacks allow you to insert an external attenuator which disconnects the internal reactive attenuator and D.I. functions.

With the hi-fi quality, transformer isolated D.I., you can go straight into your DAW and load up your favorite IRs. Use a TS cable for unbalanced or TRS for a balanced connection to your recording interface. The 4x4 Amp-Speaker Selector with Reactive Attenuator can also function as a reactive load box. Just flip the switch to disconnect the speaker and record silently.

The 4x4 Amp-Speaker Selector with Reactive Attenuator will quickly become mission control for your studio. Need help deciding which product is the best fit for you? Please feel free to reach out by phone or email. We're happy to help!

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 12x12 Deluxe was designed to improve workflow in the studio by eliminating the need to re-cable amps and cabs. This version expands on our previous designs by incorporating simultaneous input switching and a bypassable attenuator loop.

Plug in your guitar / pedalboard and send it to any of the 12 connected amps by rotating the Amplifier dial. The amp's output is then sent to the selected speaker cabinet. We've also included an attenuator loop that allows you to easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet.

The 12x12 Deluxe runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifier inputs are transformer isolated to prevent ground loops. Unused amps are muted at the input and switched to a protective load.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 4x4 Pro Plus was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and cabs. This version expands on our previous designs by incorporating simultaneous input switching, fx loop switching, an attenuator loop, dual speaker mode and a variable line out for going direct into a DAW for use with IRs or cab simulators.

Turning the front panel Amplifier dial will do the following:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the Pedalboard In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

When activated, the attenuator follows the selected amp and cabinet, so you can easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet. Should you prefer to go straight from amp to cabinet, just place the Attenuator switch in the down position to bypass the attenuator loop. Similarly, the active amp's FX loop can be bypassed by placing the FX Loop switch in the down position.

The 4x4 Pro Plus runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifiers are transformer isolated to prevent ground loops.

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker Selector 4x4 with Reactive Attenuator IR Loader was designed to improve workflow in the studio by eliminating the need to re-cable amps and speaker cabinets. This version expands on our previous designs by incorporating a built-in reactive attenuator that can be used as a load box for silent recording along with a transformer isolated impulse response output.

The front panel includes an input for your guitar or pedal followed by a three position power switch; off, direct and isolated. The direct setting takes the front panel input and sends it straight to the amp. Iso employs an transformer isolation to prevent any potential ground loops. Engaging the ground switch while in Iso mode bypasses the transformer while still offering a low impedance buffered output to the amp. Multiple functions are controlled by the Amplifier dial. Selecting positions 1-4 will:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load

Easily pair any of your amps with one of up to four connected cabinets by rotating the speaker switch. Should you need to roll back the SPL in the room, but keep your amp operating in the sweet spot, turn on the internal reactive attenuator. Attenuation is linearly variable from -6dB up to -22.5dB. Our unique design eliminates the need for impedance matching at the amp. Just connect your amp's 8 ohm output to the 4x4 Amp-Speaker Selector, then you can use any cab between 16 and 4 ohms.

Do you still want to be able to connect an Ox, Fryette Power Station or Boss Tube Amp Expander? No problem! The rear panel jacks allow you to insert an external attenuator which disconnects the internal reactive attenuator and D.I. functions.

The Hi-Fi quality, transformer isolated IR Out allows you to go straight into your DAW to load up your favorite IRs or use one of our 10 included impulse responses for a variety of high quality cabs sims.

Included Impulse Responses (See "Sounds" tab below):

01 Vox AC30
02 Marshall 1960AV
03 Marshall 2550
04 Orange PPC
05 Celestion Vintage 30
06 Tweed Bassman
07 Tweed Champ
08 Blackface Twin
09 Mesa Rectifier
10 Ampeg SVT
11 Bypass

Use a TS cable for unbalanced or TRS for a balanced connection to your recording interface. The Amp-Speaker Selector with Reactive Attenuator IR Loader can also function as a reactive load box. Just flip the switch to disconnect the speaker and record silently.

The 4x4 Amp-Speaker Selector with Reactive Attenuator IR Loader will quickly become mission control for your studio. Need help deciding which product is the best fit for you? Please feel free to reach out by phone or email. We're happy to help!

Patent Pending.

The de Lisle Amp-Speaker 8x8 with Reactive Attenuator was designed to improve workflow in the studio by eliminating the need to re-cable amps and speaker cabinets. This version expands on our previous designs by incorporating a built-in reactive attenuator that can be used as a load box for silent recording along with a transformer isolated D.I.

The front panel includes an input for your guitar or pedal followed by a three position power switch; off, mute and on. The handy ground switch will allow you to bypass the input isolation transformers should any amp need quieting down. Multiple functions are controlled by the Amplifier dial. Selecting positions 1-8 will:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load

Easily pair any of your amps with one of up to four connected cabinets by rotating the speaker switch. Should you need to roll back the SPL in the room, but keep your amp operating in the sweet spot, turn on the internal reactive attenuator. Attenuation is linearly variable from -6dB up to -22.5dB. Our unique design eliminates the need for impedance matching at the amp. Just connect your amp's 8 ohm output to the 8x8 Amp-Speaker Selector, then you can use any cab between 16 and 4 ohms.

Do you still want to be able to connect an Ox, Fryette Power Station or Boss Tube Amp Expander? No problem! The rear panel jacks allow you to insert an external attenuator which disconnects the internal reactive attenuator and D.I. functions.

With the hi-fi quality, transformer isolated D.I., you can go straight into your DAW and load up your favorite IRs. Use a TS cable for unbalanced or TRS for a balanced connection to your recording interface. The 8x8 Amp-Speaker Selector with Reactive Attenuator can also function as a reactive load box. Just flip the switch to disconnect the speaker and record silently.

The 8x8 Amp-Speaker Selector with Reactive Attenuator will quickly become mission control for your studio. Need help deciding which product is the best fit for you? Please feel free to reach out by phone or email. We're happy to help!

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 8x6 Pro was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and cabs. This version expands on our previous designs by incorporating simultaneous input switching, fx loop switching and an attenuator loop.

Turning the front panel Amplifier dial will do the following:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the Pedalboard In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

When activated, the attenuator follows the selected amp and cabinet, so you can easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet. Should you prefer to go straight from amp to cabinet, just place the Attenuator switch in the down position to bypass the attenuator loop. Similarly, the active amp's FX loop can be bypassed by placing the FX Loop switch in the down position.

The 8x6 Pro runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifiers are transformer isolated to prevent ground loops.

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 4x4 Pro Plus with Reactive Attenuator was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and speaker cabinets. This version expands on our previous designs by incorporating a built-in reactive attenuator that can be used as a load box for silent recording along with a transformer isolated D.I., simultaneous input switching, fx loop switching and dual speaker mode.

Multiple functions are controlled by the Amplifier dial. Selecting positions 1-4 will:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the FX In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

Easily pair any of your amps with one or two of up to four connected cabinets by rotating the speaker switch. Should you need to roll back the SPL in the room, but keep your amp operating in the sweet spot, turn on the internal reactive attenuator. Attenuation is linearly variable from -6dB up to -22.5dB. Our unique design eliminates the need for impedance matching at the amp. Just connect your amp's 8 ohm output to the 4x4 Pro Plus Amp-Speaker Selector with Reactive Attenuator, then you can use any combination of cabs between 16 and 4 ohms.

Do you still want to be able to connect an Ox, Fryette Power Station or Boss Tube Amp Expander? No problem! The rear panel jacks allow you to insert an external attenuator which disconnects the internal reactive attenuator and D.I. functions.

With the hi-fi quality, transformer isolated D.I., you can go straight into your DAW and load up your favorite IRs. Use a TS cable for unbalanced or TRS for a balanced connection to your recording interface. The 4x4 Pro Plus Amp-Speaker Selector with Reactive Attenuator can also function as a reactive load box. Just flip the switch to disconnect the speaker and record silently.

The 4x4 Pro Plus Amp-Speaker Selector with Reactive Attenuator will quickly become mission control for your studio. Need help deciding which product is the best fit for you? Please feel free to reach out by phone or email. We're happy to help!

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker Selector 8x8 with Reactive Attenuator IR Loader was designed to improve workflow in the studio by eliminating the need to re-cable amps and speaker cabinets. This version expands on our previous designs by incorporating a built-in reactive attenuator that can be used as a load box for silent recording along with a transformer isolated impulse response output.

The front panel includes an input for your guitar or pedal followed by a three position power switch; off, direct and isolated. The direct setting takes the front panel input and sends it straight to the amp. Iso employs an transformer isolation to prevent any potential ground loops. Engaging the ground switch while in Iso mode bypasses the transformer while still offering a low impedance buffered output to the amp. Multiple functions are controlled by the Amplifier dial. Selecting positions 1-8 will:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load

Easily pair any of your amps with one of up to four connected cabinets by rotating the speaker switch. Should you need to roll back the SPL in the room, but keep your amp operating in the sweet spot, turn on the internal reactive attenuator. Attenuation is linearly variable from -6dB up to -22.5dB. Our unique design eliminates the need for impedance matching at the amp. Just connect your amp's 8 ohm output to the Amp-Speaker Selector, then you can use any cab between 16 and 4 ohms.

Do you still want to be able to connect an Ox, Fryette Power Station or Boss Tube Amp Expander? No problem! The rear panel jacks allow you to insert an external attenuator which disconnects the internal reactive attenuator and D.I. functions.

The Hi-Fi quality, transformer isolated IR Out allows you to go straight into your DAW to load up your favorite IRs or use one of our 10 included impulse responses for a variety of high quality cabs sims.

Included Impulse Responses (See "Sounds" tab below):

01 Vox AC30
02 Marshall 1960AV
03 Marshall 2550
04 Orange PPC
05 Celestion Vintage 30
06 Tweed Bassman
07 Tweed Champ
08 Blackface Twin
09 Mesa Rectifier
10 Ampeg SVT
11 Bypass

Use a TS cable for unbalanced or TRS for a balanced connection to your recording interface. The 8x8 Amp-Speaker Selector with Reactive Attenuator IR Loader can also function as a reactive load box. Just flip the switch to disconnect the speaker and record silently.

The 8x8 Amp-Speaker Selector with Reactive Attenuator IR Loader will quickly become mission control for your studio. Need help deciding which product is the best fit for you? Please feel free to reach out by phone or email. We're happy to help!

Patent Pending.

The de Lisle Amp-Speaker 20x1 Deluxe was designed to improve workflow in the studio by eliminating the need to re-cable amps and cabs. This version expands on our previous designs by incorporating simultaneous input switching and a bypassable attenuator loop as well an after power amp D.I.

Plug in your guitar / pedalboard and send it to any of the 20 connected amps by rotating the Amplifier dial. The amp's output is then sent to the selected speaker cabinet. We've also included an attenuator loop that allows you to easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet.

The 20x1 Deluxe runs off a standard 2.1mm/5.5mm center negative 9V supply, which is boosted internally for increased signal headroom. Amplifier inputs are transformer isolated to prevent ground loops. Unused amps are muted at the input and switched to a protective load.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 8x6 Pro Plus was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and cabs. This version expands on our previous designs by incorporating simultaneous input switching, fx loop switching, an attenuator loop, dual speaker mode and a variable line out for going direct into a DAW for use with IRs or cab simulators.

Turning the front panel Amplifier dial will do the following:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the Pedalboard In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

When activated, the attenuator follows the selected amp and cabinet, so you can easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet. Should you prefer to go straight from amp to cabinet, just place the Attenuator switch in the down position to bypass the attenuator loop. Similarly, the active amp's FX loop can be bypassed by placing the FX Loop switch in the down position.

The 8x6 Pro Plus runs off a 2.1mm/5.5mm center negative 12V supply, which is boosted internally for increased signal headroom. Amplifiers are transformer isolated to prevent ground loops.

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.

The de Lisle Amp-Speaker 12x12 Pro was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and cabs. This version expands on our previous designs by incorporating simultaneous input switching, fx loop switching and an attenuator loop.

Turning the front panel Amplifier dial will do the following:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the Pedalboard In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

When activated, the attenuator follows the selected amp and cabinet, so you can easily connect your Ox, Fryette, etc. to any combination of amplifier and cabinet. Should you prefer to go straight from amp to cabinet, just place the Attenuator switch in the down position to bypass the attenuator loop. Similarly, the active amp's FX loop can be bypassed by placing the FX Loop switch in the down position.

The 8x6 Pro runs off a standard 2.1mm/5.5mm center negative 9V supply, which is boosted internally for increased signal headroom. Amplifiers are transformer isolated to prevent ground loops.

Patent Pending.

The de Lisle Amp-Speaker 8x6 Pro Plus with Reactive Attenuator was designed to improve workflow in the studio by eliminating the need to re-cable amps, fx and speaker cabinets. This version expands on our previous designs by incorporating a built-in reactive attenuator that can be used as a load box for silent recording along with a transformer isolated D.I., simultaneous input switching, fx loop switching and dual speaker mode.

Multiple functions are controlled by the Amplifier dial. Selecting positions 1-8 will:

• Route the guitar input to the selected amp's input
• Send the amp's output to the selected speaker
• Mute all unused amps at their input
• Switch unused amps to a load
• Route the FX In / Out to the active amp's FX send and return jacks
• Place unused amp FX loops in bypass

Easily pair any of your amps with one or two of up to six connected cabinets by rotating the speaker switch. Should you need to roll back the SPL in the room, but keep your amp operating in the sweet spot, turn on the internal reactive attenuator. Attenuation is linearly variable from -6dB up to -22.5dB. Our unique design eliminates the need for impedance matching at the amp. Just connect your amp's 8 ohm output to the 8x6 Pro Plus Amp-Speaker Selector with Reactive Attenuator, then you can use any combination of cabs between 16 and 4 ohms.

Do you still want to be able to connect an Ox, Fryette Power Station or Boss Tube Amp Expander? No problem! The rear panel jacks allow you to insert an external attenuator which disconnects the internal reactive attenuator and D.I. functions.

With the hi-fi quality, transformer isolated D.I., you can go straight into your DAW and load up your favorite IRs. Use a TS cable for unbalanced or TRS for a balanced connection to your recording interface. The 8x6 Pro Plus Amp-Speaker Selector with Reactive Attenuator can also function as a reactive load box. Just flip the switch to disconnect the speaker and record silently.

The 8x6 Pro Plus Amp-Speaker Selector with Reactive Attenuator will quickly become mission control for your studio. Need help deciding which product is the best fit for you? Please feel free to reach out by phone or email. We're happy to help!

Patent Pending.

New features for 2024 models:

There are now three options for amp input switching. DIRECT takes the front panel input and sends it directly to the input of the selected amp, bypassing any additional circuitry. This is the position for normal use. ISO, for ISOLATED, sends the input signal through an isolation transformer. This can be used to eliminate ground loops or when a low impedance output is desired. When the ground switch is in the left position, the isolation transformer is bypassed entirely and an op-amp buffer provides a low impedance output. Download the manual for the latest features and control layout.
